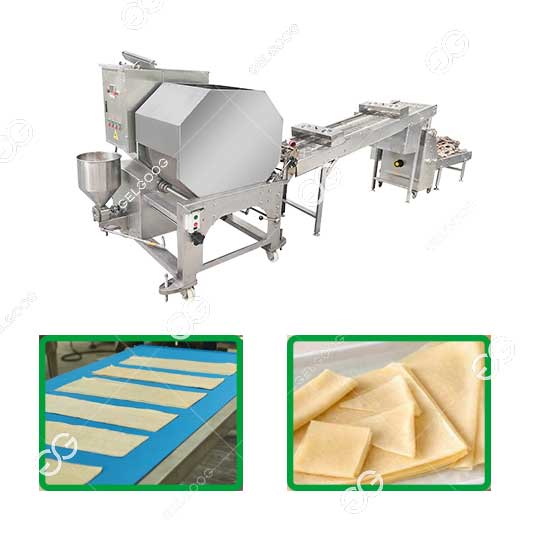

Samosa Wrapper Machine | Automatic Samosa Sheet Maker

A Samosa Wrapper Machine is industrial equipment used to automatically make thin samosa pastry sheets from a prepared flour-based batter or dough mixture.

The basic process includes:

1. Batter preparation and feeding
2. Automatic batter distribution
3. Heating and sheet formation
4. Wrapper separation from the baking drum
5. Cooling and conveying
6. Cutting to the required size
7. Counting and stacking

The continuous production method helps food factories produce large quantities of standardized samosa sheets while maintaining consistent thickness and dimensions.

The machine can also be configured as a multifunctional wrapper production system. Similar equipment is commonly used for spring roll wrappers, lumpia wrappers, egg roll sheets, crepes, pancakes, and other thin pastry products.

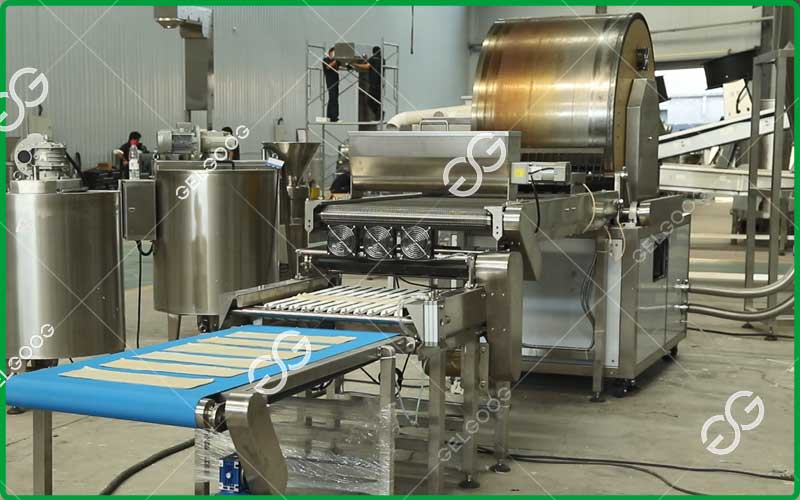

How Does a Samosa Wrapper Machine Work? – Key Steps

A typical automatic production process can be organized as:

Flour & Water → Batter Mixing → Batter Feeding → Heated Drum Baking → Wrapper Separation → Cooling → Cutting → Counting & Stacking → Packaging

• Batter Preparation – Mix flour and water to achieve desired flexibility, thickness, and texture. A mixer can be integrated for continuous supply.
• Automatic Batter Feeding – Batter is pumped and evenly spread onto a heated baking drum. Uniform distribution ensures consistent thickness and appearance.

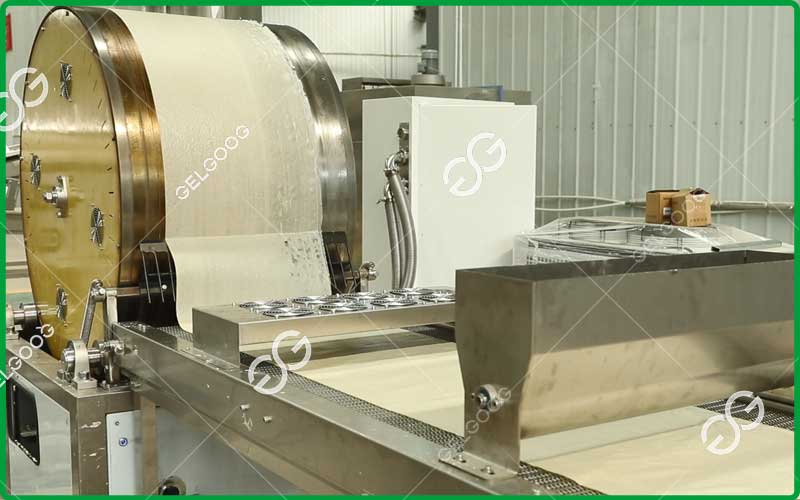

• Heating & Wrapper Formation – The rotating heated drum bakes the batter into a thin pastry sheet. Temperature and drum speed are adjustable for different specifications.
• Wrapper Separation – A scraper or similar mechanism peels the baked sheet off the drum and transfers it to a conveyor.

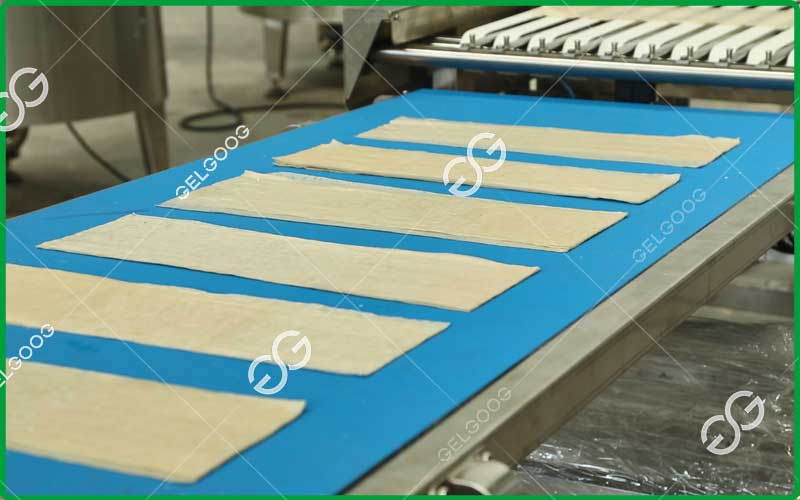

• Cooling & Conveying – The sheet passes through a cooling section to stabilize, preventing sticking and deformation.

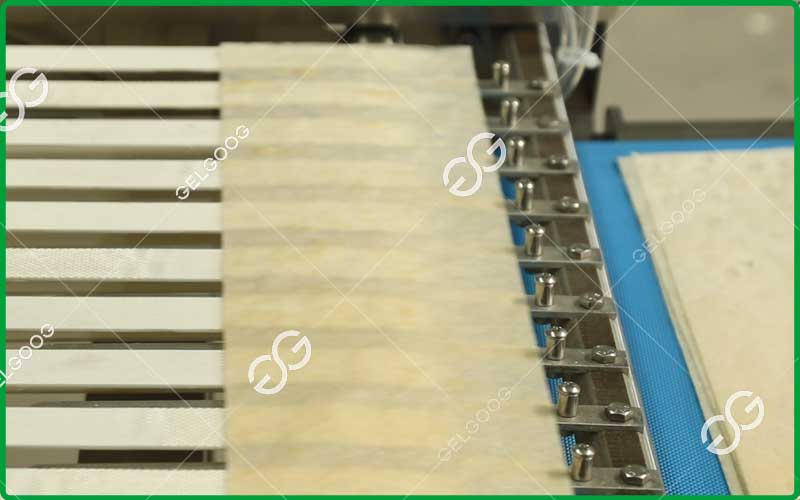

• Cutting & Stacking – The cooled sheet is cut into squares, rectangles, or other sizes, then automatically stacked into batches for packaging or samosa filling.

Key Features – Samosa Sheet Making Machine

• Continuous Automatic Production – Integrates feeding, heating, forming, cooling, conveying, and cutting into one seamless process for stable, repeatable output.
• Adjustable Wrapper Thickness – Thickness can be tuned to recipe and product needs (typical range: ~0.3–2.0 mm, depending on model).
• Adjustable Sheet Size – Cutting section configurable for different wrapper dimensions, supporting various samosa sizes and other pastry types.
• Consistent Product Quality – Automated batter distribution, controlled heating, and synchronized conveying ensure uniform thickness and size throughout production runs.

How to Choose the Right Samosa Sheet Making Machine – Key Considerations

• Required Production Capacity – Estimate hourly wrapper output. Small operations need lower capacity; large factories may require several thousand sheets/hour.
• Wrapper Size – Specify target length, width, and shape to determine the cutting configuration.
• Wrapper Thickness – Confirm desired thickness and test with actual product requirements before finalizing.
• Raw Material Formula – Flour type, water ratio, viscosity, and formulation affect sheet quality. Test the machine with your actual ingredients whenever possible.
• Heating Method – Choose electric or gas heating based on available energy sources and factory conditions.
• Production Line Integration – If making finished samosas, consider how the wrapper machine will connect with filling, forming, frying, freezing, or packaging equipment.

Samosa Wrapper Machine – FAQ (Concise)

Can it make spring roll wrappers?
Yes – suitable for samosa sheets, spring roll wrappers, lumpia wrappers, crepes, and pancakes.

What capacity does it offer?
Typically ~1,000–7,000 pieces/hour (GELGOOG models), with larger custom configurations available.

What thickness range is possible?
Adjustable from ~0.3 to 2.0 mm, depending on model and product needs.

Can it produce different wrapper sizes?
Yes – cutting system configurable for various dimensions and shapes; specify size when requesting a proposal.

Can it make both samosa and spring roll sheets on the same machine?
Yes – with suitable formulation and configuration, the same equipment can handle both.

Get a Customized Samosa Wrapper Machine Solution

The ideal Samosa Wrapper Machine depends on your required capacity, wrapper size, thickness, raw material formula, heating method, and automation level.
For an accurate machine recommendation, provide the following information:

1. Target production capacity
2. Samosa wrapper size
3. Required wrapper thickness
4. Raw material or flour type
5. Desired heating method
6. Working hours per day
7. Whether cutting and stacking are required

GELGOOG can recommend a suitable Samosa Sheet Making Machine configuration based on these production parameters and provide a customized equipment solution.
